Hi!Today I will show you how to take your psp apart!But first:
I'm not taking responsibility for what are you doing.I can only show you how to do that,but you have to do that by yourself.
You will need minimum technical knowledge to do that.
You will need an X screwdriver,like that:
[BLINK]
Video of the whole operation can be found there:[/BLINK]
VIDEO
Ok,so we can start,right?
First of all you have to unscrew the front panel screw:
Then unscrew these:
After removing front panel(just lift it up) you should have opened psp:
Now you can remove the front panel buttons.Just lift them up:
Now you can remove the screen take it out and then unplug cables:
Now unscrew these:
Now remove the whole metal plate you have just unscrewed.Your psp should look something like that:
Now remove the directional buttons panel(you have to drag it):
You can unplug these three cables:
And these(optional):
http://img137.imageshack.us/img137/9611/dsc052648yp.jpg
Now you have to lift the
mainboard.To do that you will have to pop out a usb port from psp's case and VERY CEREFULLY get a black cable(antena) around it.After that you should have something like that:
In case you want to get a wifi card/memorystick reader you will have to remove that metal plate by unscrewing these:
Ok,now remove the black plastic thing:

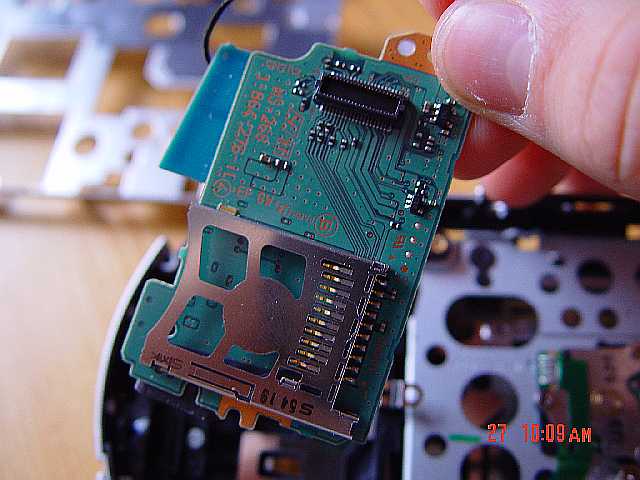

Here's a wifi card/memorystick reader:
To remove it just lift it up.Now you can then replace the antena with any stronger,external,if - of course - you know how to do that ;-).
Now your psp is completly token apart.Of course you can still remove the
umd drive,but it's much more difficult and is not covered in that tutorial
